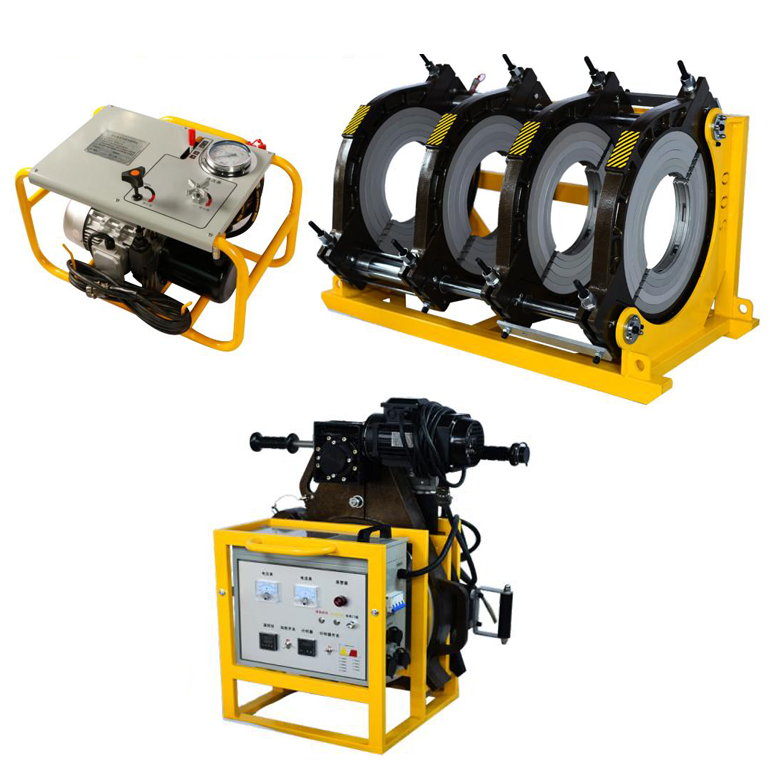

GF-500 Hydraulic Butt Fusion Welding Machine

The GF-500 is a high-performance hydraulic butt fusion welding machine designed for connecting PE, PP, PVDF, PPR, and PB pipes and pipe fittings in a variety of applications. This machine is built to last with a sturdy thickened aluminum clamp, ensuring a secure and stable welding process.

Key Features:

• Independent control box for safe and stable operation
• Explosion-proof industrial socket for safe operation
• Independent temperature control system for stable temperature control
• Teflon-coated heating plate to prevent pipes from sticking
• Gear transmission milling cutter for stable milling
• Dual channel timer for convenient heat absorption and cooling time recording
• High-precision shockproof pressure gauge for accurate pressure reading

Technical Specifications:

• Welding range: 315-500mm
• Heating plate power: 6.9kW/380v
• Milling cutter power: 1.5kW/380v

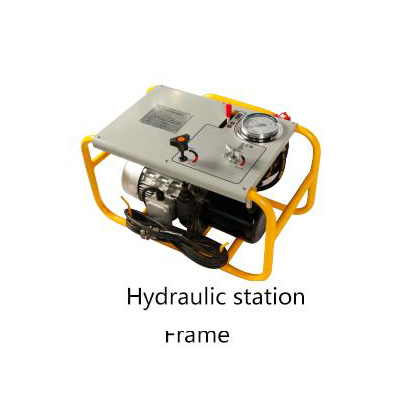

• Hydraulic station power: 1.1kW/380v
• Net weight: 353kg
• Gross weight: 424kg
• Total volume: 2.08m³
• Control box: Independent control box
• Heating plate: Independent temperature control system, Teflon-coated
• Package size: 9274110cm

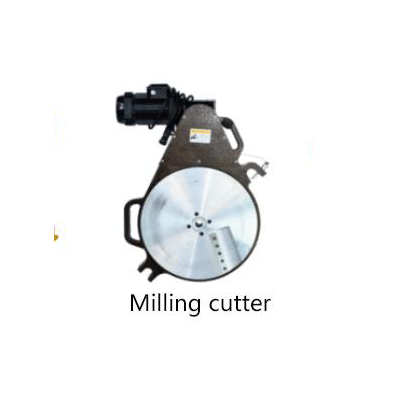

• Milling cutter: Gear transmission, 158kg

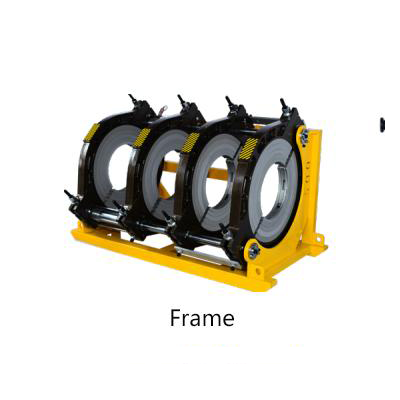

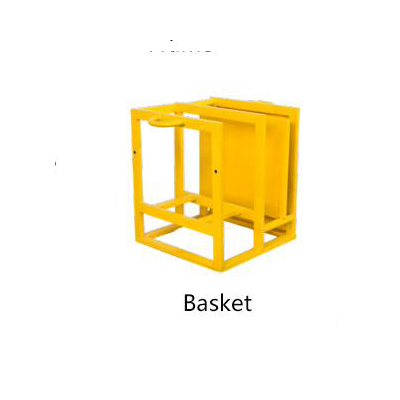

• Weight: 215kg (frame), 67kg (basket)

Reliable and efficient solution for connecting PE, PP, PVDF, PPR, and PB pipes and pipe fittings. Its durable construction, high-quality components, and precise welding capabilities make it an ideal choice for a variety of applications.
