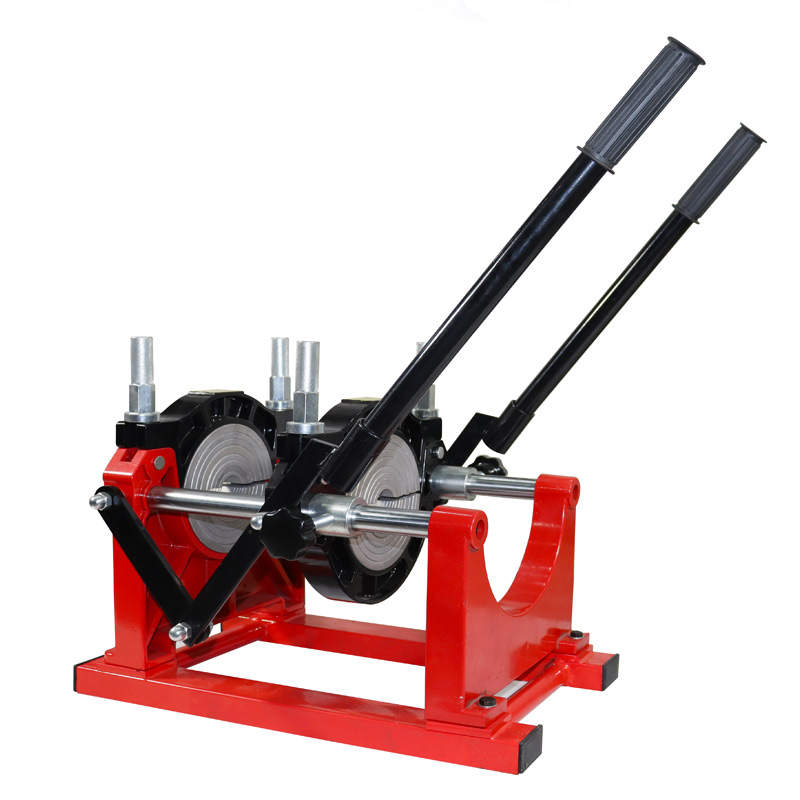

The HDT160-200 Hand Operated Butt Fusion Welding Machine is ideal for welding materials like PE, PP, and PVDF, featuring a lever-operated design for ease of use. It includes a basic frame, a high-power milling cutter with a mirror cutter disk for smooth and precise milling, a Teflon-coated heating plate with a maximum temperature of 270°C, and a separate temperature control system. Designed to perform in challenging environments, it operates reliably in temperatures ranging from -40°C to +40°C, with a strong motor and high concentricity ensuring efficient performance in complex working conditions.
Application & Features:
1: Suitable for material of PE, PP, PVDF.
2: Consists of basic frame, milling cutter, heating plate, support.
3: Working environment must be between -40C°~ +40C°
4: Heating plate Max. Temperature: 270°C
5: Butt welding machine can be operated in any complex work condition.
6. Teflon coated heating plate with separate temperature control system.
7. High power milling cutter, mirror cutter disk, strong motor, high concentricity, smooth milling.
| HDT160 Technology Information | ||||
| Welding Range: 40mm, 50mm, 63mm, 75mm, 90mm, 110mm, 125mm, 140mm, 160mm | ||||
| Package Size: 55*50*49 1 Plywood Cases | ||||
| Total Volume: 0.135m³ | Net Weight: 30.2kgs | Gross Weight: 37.3kgs | ||
| Basic Frame | Heating plate | Milling Cutter | Support | |
| Size | 48*28*78 cm | 30*5*35 cm | 36*26*32 cm | 30*18.5*42 cm |
| Weight | 20kgs | 2.7kgs | 6kgs | 1.5kgs |
| Power | 1.71 kw/220v | |||
| HDT200 Technology Information | ||||
| Welding Range: 63mm, 75mm, 90mm, 110mm, 125mm, 140mm, 160mm, 180mm, 200mm | ||||
| Package Size: 55*50*49 1 Plywood Cases | ||||
| Total Volume: 0.135m³ | Net Weight: 33.1kgs | Gross Weight: 40kgs | ||
| Basic Frame | Heating plate | Milling Cutter | Support | |
| Size | 48*33*81 cm | 31*6*39 cm | 38*26*36 cm | 33.5*18.5*46 cm |
| Weight | 23kgs | 3.6kgs | 7kgs | 2.1kgs |
| Power | 2.31 kw/220v | |||
